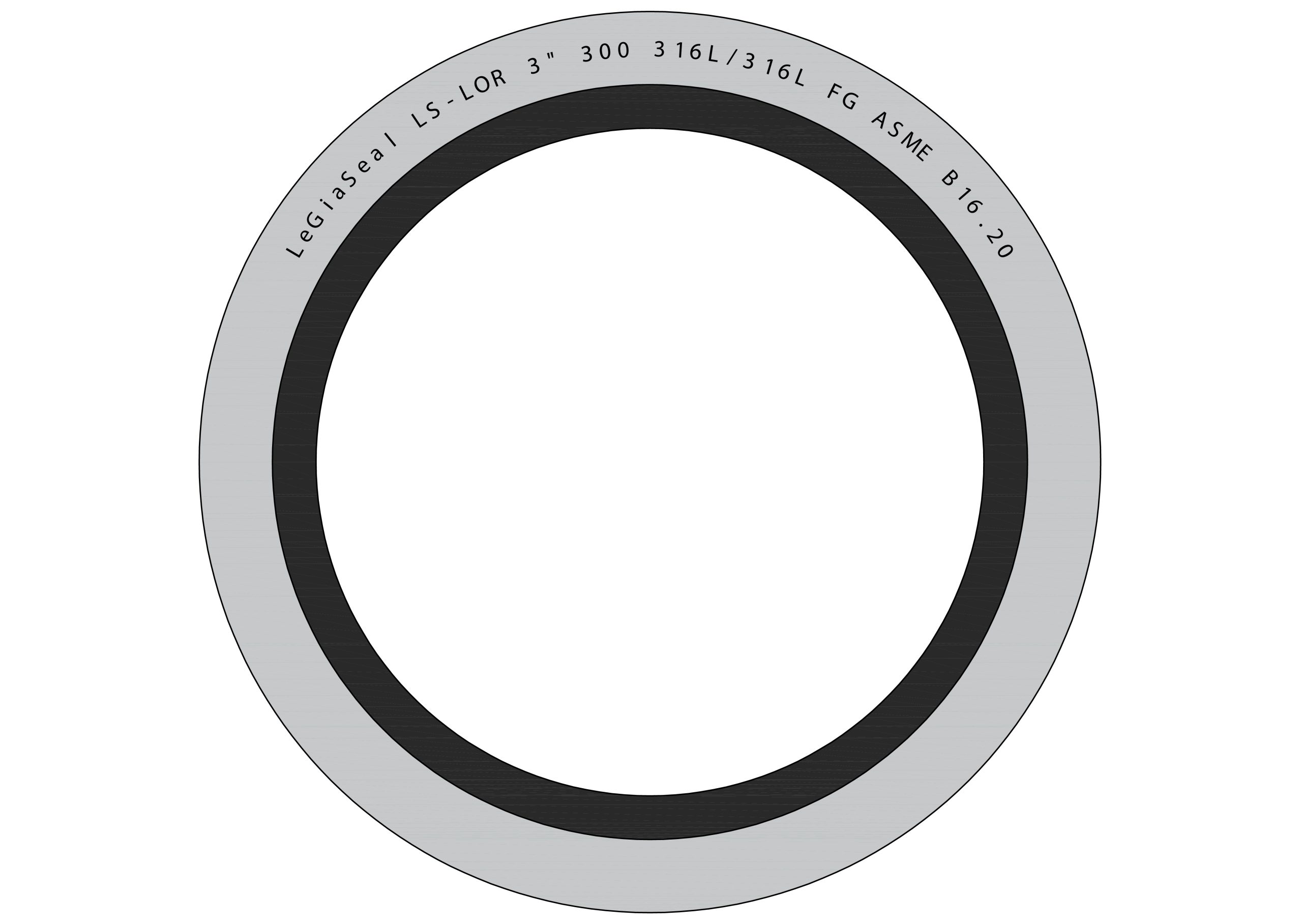

With Loose Guide Ring (LS_LOR)
- Brand: Legiaseal
- Type: Kammprofile Gasket LEGIASEAL Semi-Metallic Gasket With Loose Guide Ring
With Loose Guide Ring (LS_LOR) utilizes a loose fit guide ring.
With Loose Guide Ring (LS_LOR) utilizes a loose fit guide ring.
This popular design is preferred for nominal pipe size and pressure class raised face flanges and is used in equipment with excessive radial shear characteristics, thermal cycling, and expansions. The gasket is typically designed and sized per EN12560-6 spec for ASME B16.5 flanges, but can be manufactured to fit other standards.
