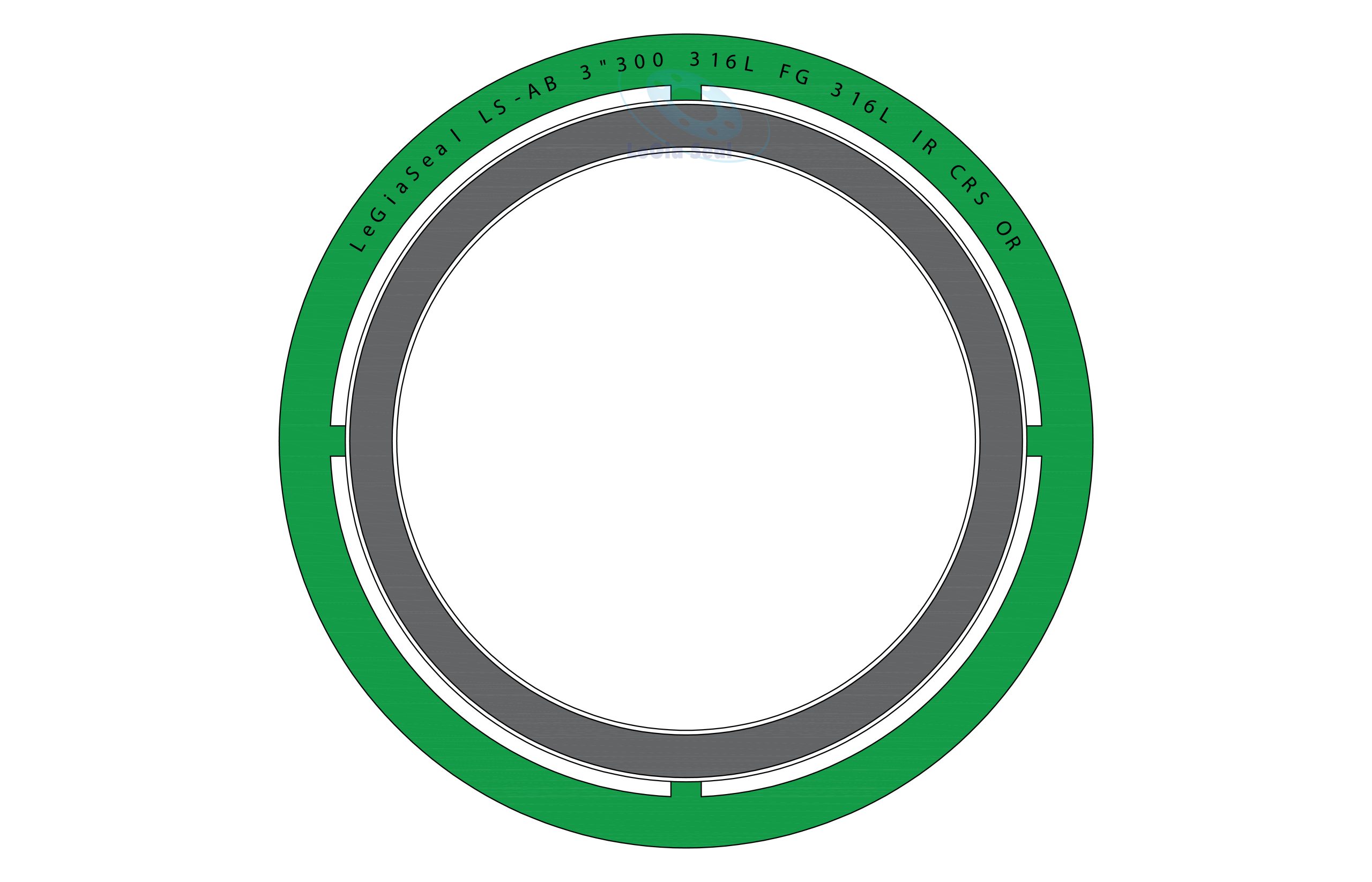

Inward buckling of spiral wound gaskets remains a concern in the industry. Various industry committees are actively working to improve standards to address this issue. Some end users avoid using inner rings due to cost or bore intrusion. To meet this need, We offer LS_AB style gasket.
Inward buckling of spiral wound gaskets remains a concern in the industry. Various industry committees are actively working to improve standards to address this issue. Some end users avoid using inner rings due to cost or bore intrusion. To meet this need, We offer LS_AB style gasket.

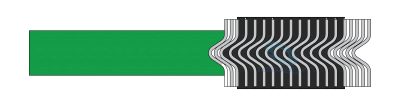

By creating an expansion space between the OD of the winding and the outer ring, this design helps reduce the risk of inward buckling. Additionally, a reinforced inner circumference further minimizes the likelihood of buckling after installation.
The LS_LL style gasket is engineered to seal effectively at lower seating stresses. With this design, the gasket requires less bolt load to seat while still delivering the same recovery capability as a standard spiral wound gasket.

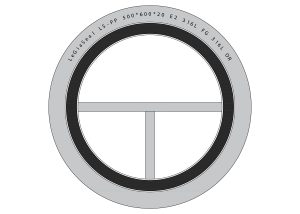

These gaskets are similar in construction to Style without inner & outer ring , with outer ring, with the addition of pass partitions designed for use in shell and tube heat exchangers. The partitions are typically supplied in double-jacketed construction, using the same material as the spiral wound component.
This gasket is engineered for use in Acid application. It utilizes a Monel and PTFE filler, combine with a carbon steel centering ring and a PTFE inner ring for added chemical resistance.
With widely usage, it is applicable to sealing under heavily alternating temperature or pressure such as the static sealing at flanges of pipeline, valves, pumps, heat exchangers, columns, manhole and hand hole. It has a wide application in petrochemical mechanical, electric power, metallurgical, ship-building, pharmaceu-tical, nuclear power and aerospace industries.
Applications:
