THE FUTURE OF HIGH PERFORMANCE SEALING HAS ARRIVED
1,000,000 times lower leakage than TA-LUFT Test limit
25 times lower leakage than Chevron Fugitive Emissions Test limit
Pass API 6FB Fire Test
| Design

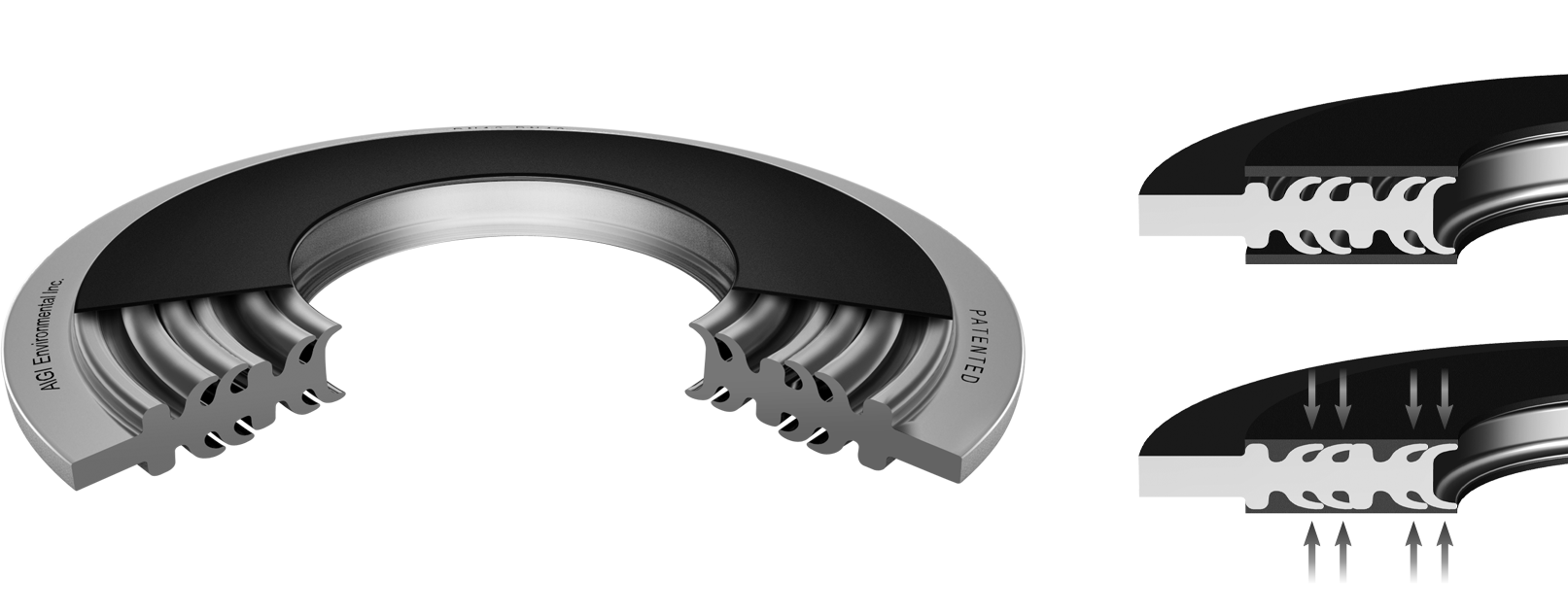

✦ Helical concentric bevelled ribs,each side covered with Graphite, PTFE or Mica ✦ Unitary design with or without a centering ring ✦ Rounded, non-sharp contact surface ✦ Unique Stop-Step design |
Advantages

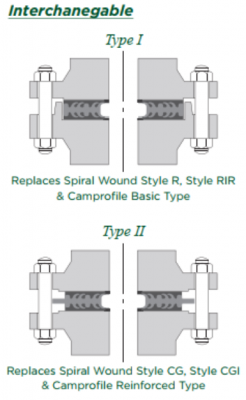

✦ Internally self-energized and by fluidpressure for better sealing performance ✦ Interchangeable with all spiral wound gaskets and Camprofile gaskets ✦ Will not damage flange like Camprofile gaskets and spiral wound gaskets ✦ Prevents over-compression of sealing element |
| Features

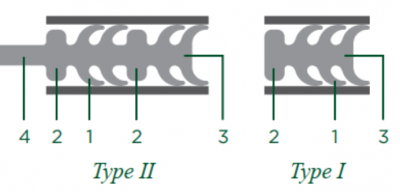

1. Patented helical concentric bevelled ribs. The number of ribs grows with the increasing pressure class. 2. Unique Stop-Step design Manufactured with single or double stop-steps depends upon the sealing width. 3. Self-energized by fluid pressure 4. Unitary design with (Type II) or without (Type I) a centering ring |
 |
| Technical Specifications
Standard Materials
Temperature Range
|
Standard Sizes
International Standard
|
 |
|||||||||||||||||||||||
 |
1. TA_Luft Certificate
2. API 6FB Fire Test Report
3. Chevron Fugitive Emission Test
Updating…..
Compensate for gasket
Sealing load loss caused by bolt relaxation, high temperature metal fatigue and gasket creep
The new OvOn™ bidirectional spring not only acts as a normal spring to compensate for load loss but also acts in the opposite direction to prevent over-compression of the gasket.
